Your benefits at a glance

The bed is equipped with two gas springs enabling bed positioning. STABILUS – gas springs offer reliability and long service life.

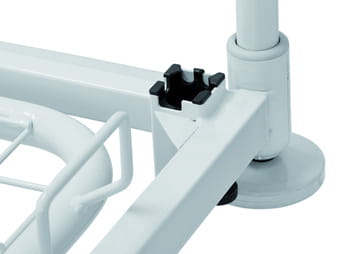

As  standard, all beds are equipped with holders for  trapeze and infusion stands. The holders are situated at the corners of the head end of the bed.

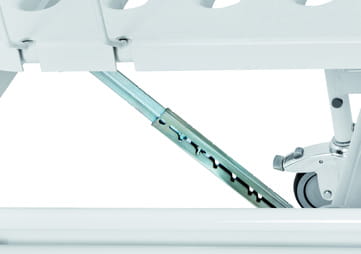

Using a raster, the calf section can be mechanically adjusted to 5 height levels.

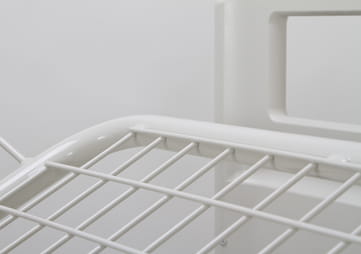

The mesh in mattress platform sections is welded under the upper edge of the frame to prevent the risk of abrasions and cuts for nursing staff when changing the bedding.

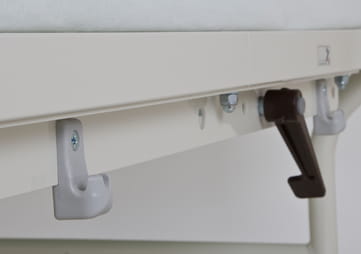

Bars with plastic hooks are situated on both sides of the bed. The bars can be used to hang small accessories (holder for slippers, basket for a bedpan, Redon bottle holder).

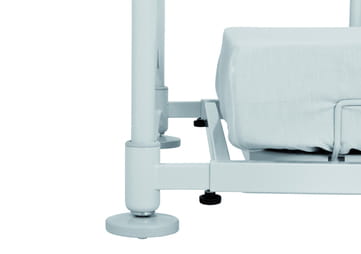

The length of the bed can be extended by up to 20 cm. The foot crossbar can be extended in length by 10 cm and another 10 cm extension is available at the head section.

Technical features

Outer dimensions (Side rails up) 215 cm x 97(106) cm
Mattress Platform Shortened/Extension 0/+20 cm
Recommended Mattress Size 200 cm x 86 cm x 14 cm
Max. Mattress Height 18 cm
Bed Height 55 cm
Maximum Backrest Angle 75°
Maximum Thigh Rest Angle 45°
Trendelenburg/Anti-Trendelenburg Positio +15°/-9°
Height of Side Rails (above Mattress Platform) 40,5 cm
Weight (Basic Equipment) 70 kg
Safe Working Load 170 kg
Max. Lifting Pole Load 75 kg
Max. Patient Weight 150 kg
Height adjustment N/A
TR/ATR tilt adjustment Mechanical
Backrest adjustment Mechanical / Gas spring
Thighrest adjustment Mechanical / Gas spring
Calfrest N/A / mechanical ratchet
Bed extension Mechanical

Single collapsible side rails

  • 2 or 4-section mattress platform
  • Mesh sections welded to the mattress platform
  • Plastic covers for the mattress platform (O)

Fixed construction

  • 4 castors 125 mm Tente
  • 4 castors 150 mm Tente Integral (O)
  • Individual or centrally operated control brake

mechanical tilting TR/ATR

  • Non-removable powder coated HE/FE with HPL
  • Removable powder coated HE/FE with HPL
  • Removable plastic bed end design E1 (without fixation)
